Fine grain, fully spheroidized steel with low Rockwell hardness. Easy of forming and heat treating makes annealed high carbon spring steel suitable for a wide variety of applications.



Where strength, spring requirements, high fatigue or wear properties are specified, along with automotive parts, knives, small files, mechanical springs, scrapers, clips so on.

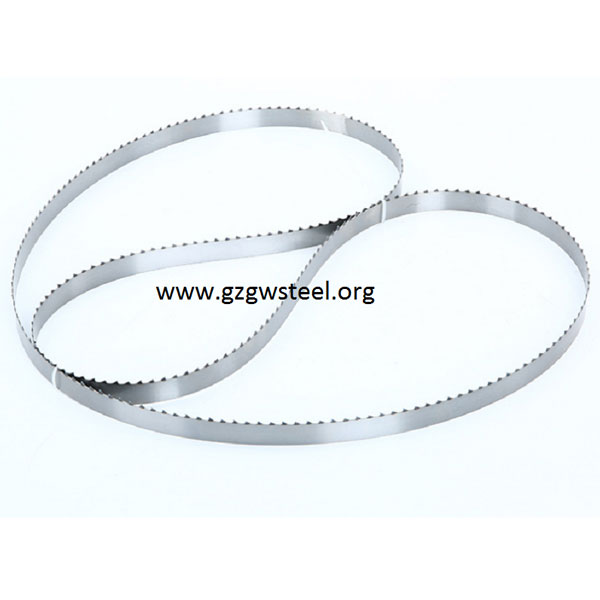

High carbon steel band saw blade for meat and bone with special teeth setting and hardening to soomth and clearner cutting without vibration as keeping excellent flatness and straightness of crude material control on the hardened and tempered process.

Hardness max 180HV annealing high carbon steel strip SAE1055, C55S

Sutiable for stamping auto parts and railway spring clips.

Max width with good flating is better keep in 320mm as our present facilities.

SAE1045, SAE 1050, SAE1055, SAE1060 spheroidized annealing material

for shoes toe  caps and spring clips production more.

Tensile strength max 180hv

With grade ck50/ck55/ck60/ck67/ck70/ck75/SAE1055/SAE1074/C67S/C70S/C75S/51CRV4/60SI2MN/ 420J2 so on

Production range of thickness from 0.15mm to 4.0mm, width from 4mm to 600mm.

Condition: annealing, hardening and tempereing.

Material end use to spring clips and stamping parts for railway and automative

With cold rolled spheroidized annealing station

Max 190HV

Suitable for lawn blade production

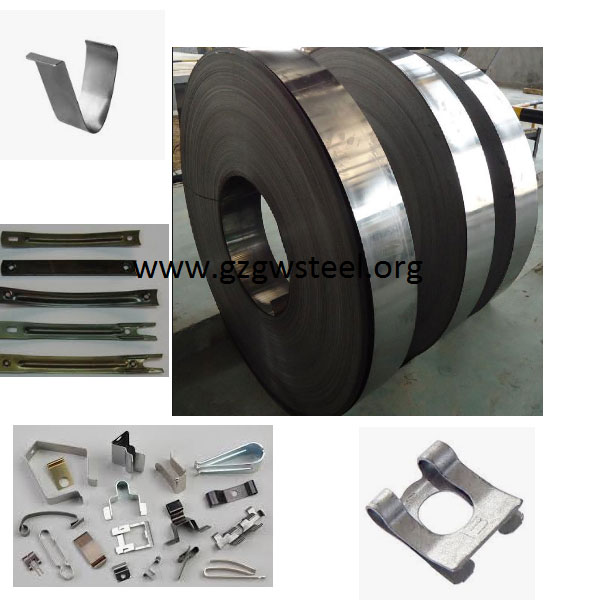

Railway spring clip

And spring components

For stamping parts and automotive components.

Specially in high carbon spring alloy steel strip

SAE1055,SAE1060,SAE1065,SAE1070,SAE1075,SAE1080,

SAE1095,51CRV4,60SI2MN.ETC

Thickness: 0.15mm---3.0mm

Width : 6mm---320mm

Tensile strength : 458-545mpa

Yield strength: 290-390mpa

Elongation:  10-29%

Hardness: 77-85hrc

Coil ID:300MM,400MM, 500MM
